Summary of application

STEP 1: Assessment of the floor

STEP 2: Surface Preparation.

STEP 3: Application of Ressi EPO Crack Fill.

STEP 4: Finishing of the surface.

Detailed description

Industrial & commercial cementitious floors go through a lot of wear & tear throughout their useful life. It is not unusual for hair line cracks to be developed on many of these floors from time to time. Ressichem has an ideal solution for the flling of

these cracks of high strength cementitious industrial & commercial floors. There are a few easy steps to assess the possibility of crack filling & floor repair (if any).

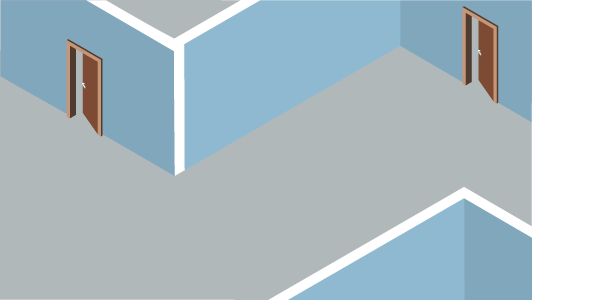

Step 1: Assessment of the floor

For all cementitious floors it is essential to evaluate the nature of the cracks & the repairing which is required over the  floor. If there are hollow sounds on the floor & it has been de-bonded from the base RCC concrete it is recommended to completely remove the flooring & redo the entire works as crack filling of these floors may provide temporary relief & not be a permanent solution to the problem. If there are just minor cracks & the floor itself is solid, there is a long-term repair option in the form of Ressi EPO Crack Fill which will enhance the life of the cemented floor.

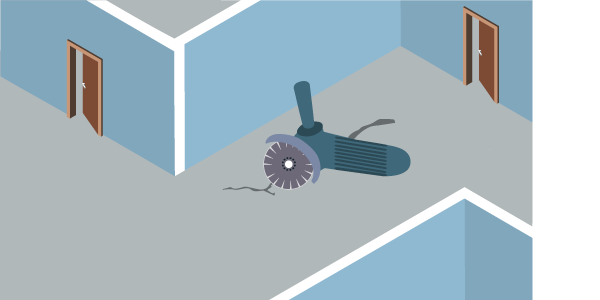

Step 2: Surface preparation

Once the relative cracks have been identified over the  floor it is essential to prepare the  floor for the subsequent treatments of Flooring Epoxy Crack Fillers. If the hair line cracks are less then 2mm wide, it is recommended to slightly open the cracks using a chisel hammer or any other appropriate tools. Once the cracks have been opened, it is recommended to clean all the loose debris from the  floor and cleaning the cracks with a wet brush and some water. Once it has been clean make sure that the  floor itself is dry.

Cleaning of the surface is essential as poor cleaning may result in the debonding of the crack  fillers applied on the surface resulting in even bigger cracks. It is also essential to make sure that the floor surface is free from any dust, oil, grease, laitance, or any other material which may result in the debonding of the crack fllling material.

Once the crack has been opened and proper surface has been prepared, the surface is ready to take in the subsequent crack flling of Ressi EPO Crack Fill .

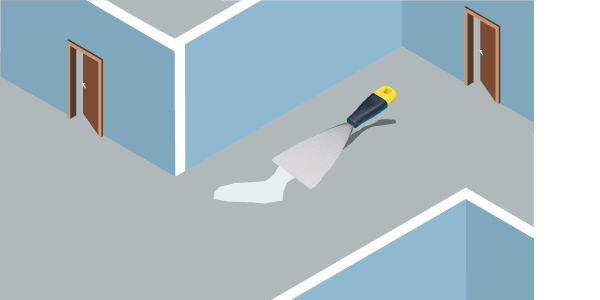

Step 3: Application of Ressi EPO Crack Fill

Ressi EPO Crack Fill is a three-component epoxy-based crack  filler. It contains Base Resin (Part A), Hardener (Part B) & Filler component (Part C). It is essential that the ratios of the resin & Hardeners should always be consistent (1 part Resin & 0.8 Parts Hardener). The filler ratio can be adjusted as per the requirements of the crack filler. If the cracks are deep (above 4mm in depth), the filler ratio can be adjusted to make the Ressi EPO Crack Fill   more flowable so that it can penetrate within the cracks, if the cracks of the floor are less then 4mm deep, the filler ratio can be adjusted to make a putty like paste of Ressi EPO Crack Fill  material so that it can easily be applied with a scrapper.

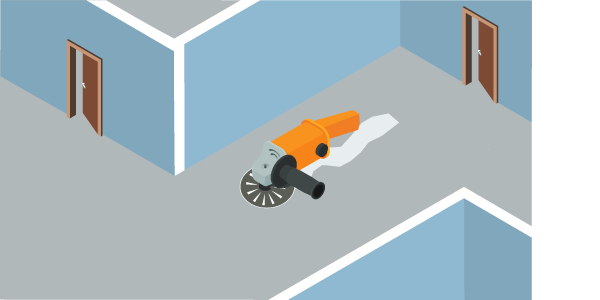

Step 4: Finishing of the surface.

Once the material has been penetrated and the cracks within the floors have been filled, it is recommended to level out the floor using a grinder (Fitted with a scraper cup) or other mechanical means to make the area of the crack filler smooth and consistent and at level with the floor.

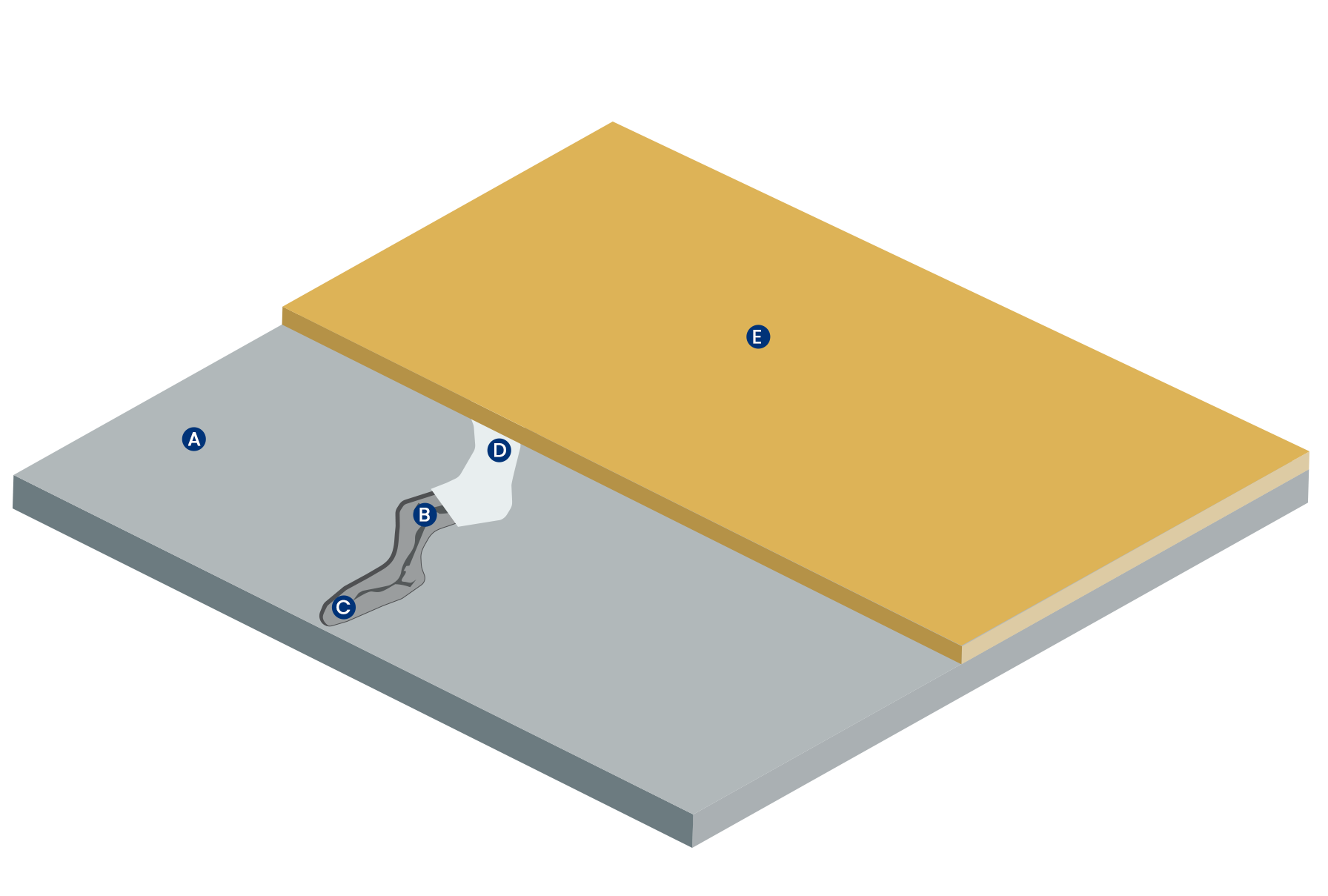

System Summary

CRACK FILLING OF INDUSTRIAL & CEMENTTIOUS FLOORS

A: Concrete Floor
B: Cracks
C: Opening of Cracks
D: Ressi EPO Crack Fill
E: Finished Floor

Application Animation

Crack Filling Of Industrial Cementitious Floors

Concept Video
