Ressi Anchor Fix

Ressi Anchor Fix is a three-component epoxy based high strength adhesive and anchor grout. It forms to give a strong, dense solid material. It is available in premeasured ready to use kit.

Clear
Add to wishlist

    Ressi Anchor Fix is a three-component epoxy based high strength adhesive and anchor grout. It forms to give a strong, dense solid material. It is available in premeasured ready to use kit.

    STANDARDS

    BS 6319: Part 2, BS 6319: PART 3, BS 6319: PART 7

    USES

    Ressi Anchor Fix is used as epoxy grouting for bar anchor, starter bars, bridge bearing, boom fixing, bolts, nails, etc. It is used for speedy and permanent patching repairs to concrete structures, bonding of precast concrete components, bridge bearings to concrete and all structural repair works where strength, impermeability to water and resistance to aggressive chemicals is essential.

    ADVANTAGES

    • High early strength
    • Good adhesion to all substrates
    • Unaffected by a wide range of acids, alkalis, and industrial chemicals
    • 3 to 4 times stronger than typical concrete
    • Excellent resistance to abrasion and impact.
    • Vibration resistant
    • Corrosion resistant
    • Tolerant to damp conditions

    SURFACE PREPARATION

    All surfaces should be dry, clean, free from standing water, grease, curing compounds, mold oils and all loosely adhering particles. Cement laitance should be removed by mechanical means. Roughen surfaces with chipping to ensure good bonding.

    MIXING

    Mix component A and B together thoroughly with a slow speed drill for 1 minute (max 400 R.P.M.). Once the mixture is homogenous, Part C can be added as per the recommended ratio and packaging. The product is ready to use one all three components are mixed properly and homogenous.

    APPLICATION

    For Anchor Bolts: Anchor bolt, dowel & starter bar holes must be dry. For bolts which will be placed into preformed holes, fill hole with Ressi Anchor Fix & gradually work the bolt into the grout.

    For Patching Work: Apply the material by using notch trowel, scrapper or with a big spatula.

    QUANTITY ESTIMATE:

    Hole Diameter (mm)

    Volume of Grout for bolt diameter

    12

    16

    20

    25

    32

    40

    20

    25



    25

    50

    40

    25



    32

    80

    70

    60

    40



    38



    130

    100

    75

    45



    45



    150

    130

    100

    45

    50



    180

    150

    90

    62



    280

    225

    Volume of Ressi Anchor Fix SG in ml./100 mm. bond length

    SHELF LIFE

    12 months from date of production, if stored properly in original unopened packing in dry conditions and away from sunlight and scorching heat.

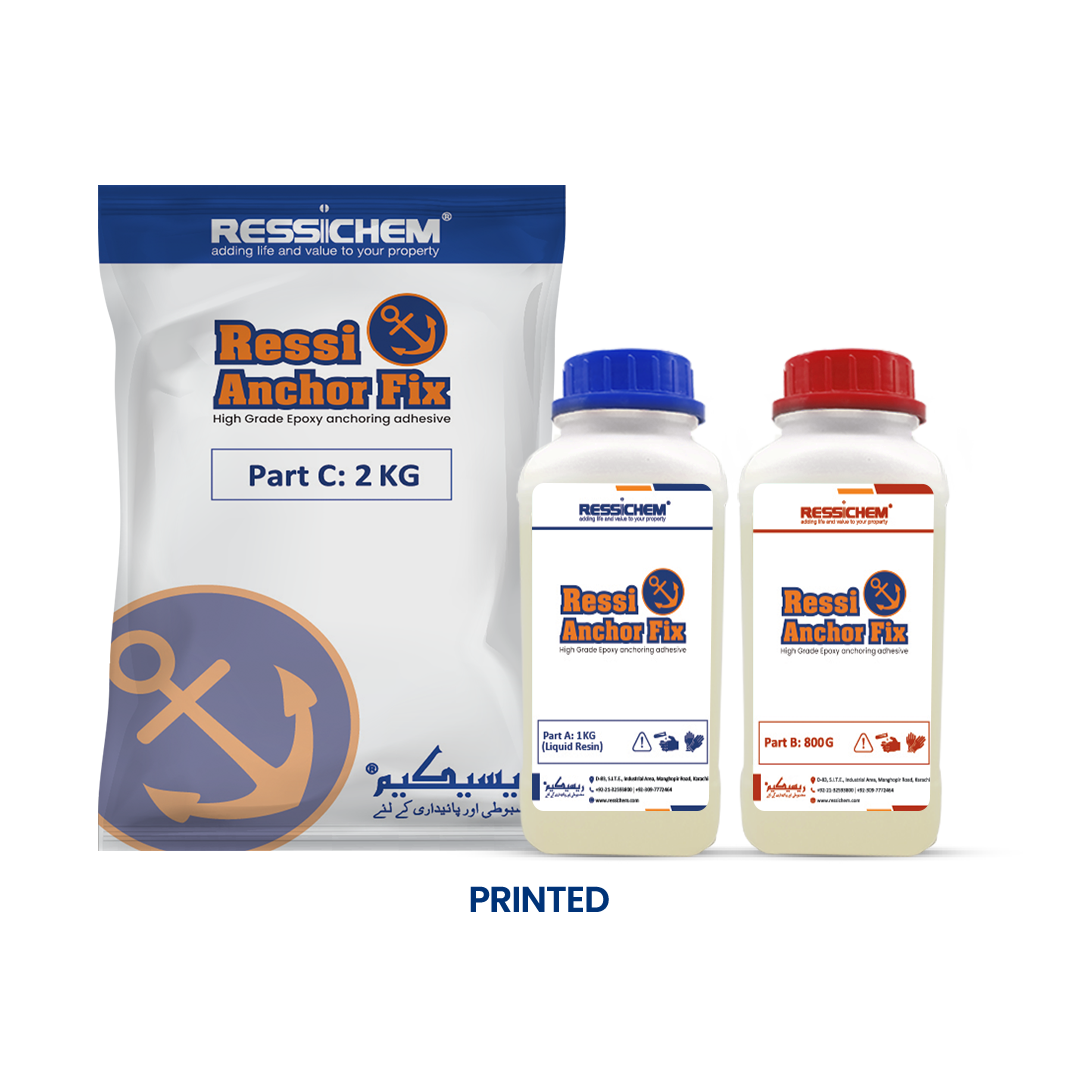

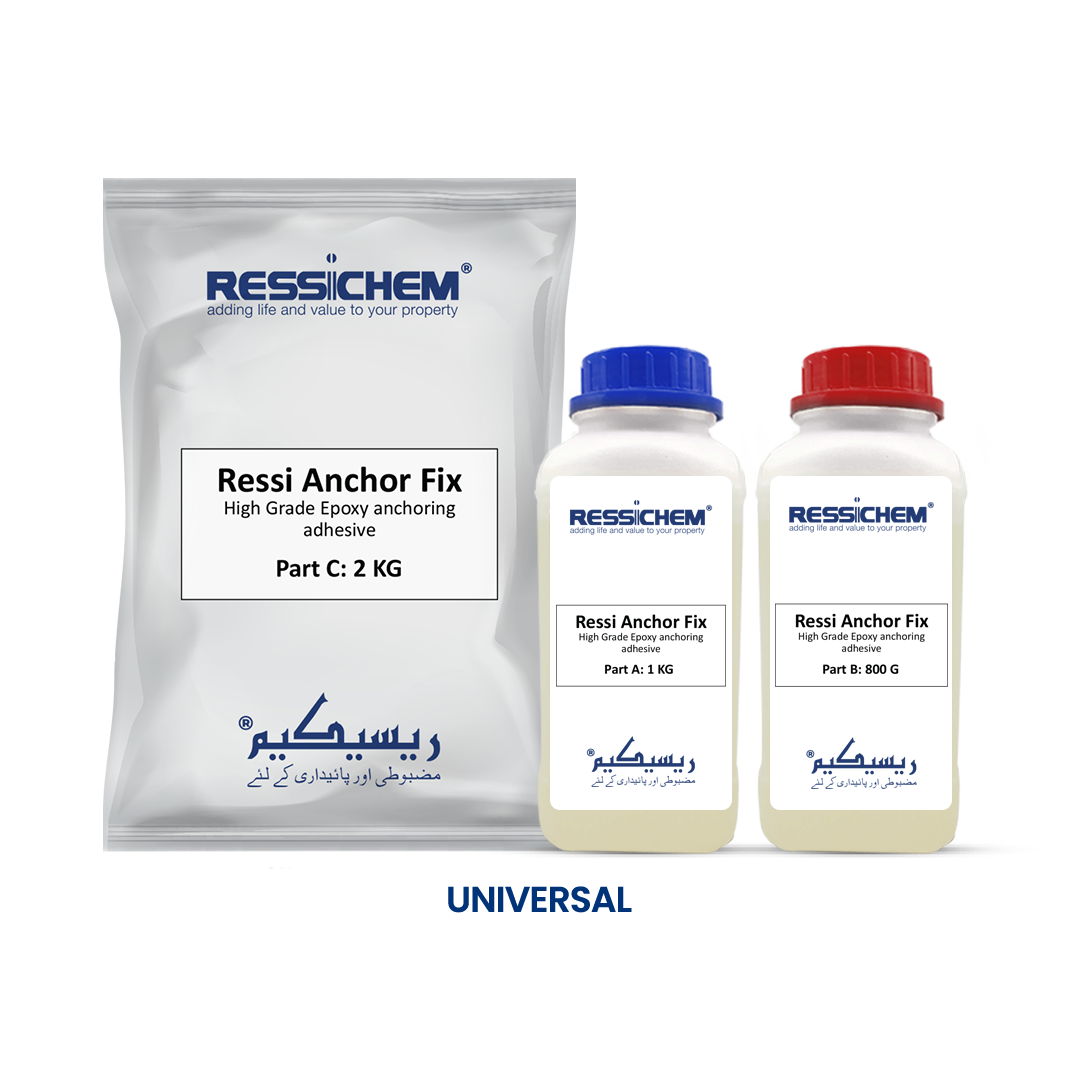

    PACKAGING

    Ressi Anchor Fix is available as follows.

    3.8 KG Packs                                      Part A: 1 KG
                                                              Part B: 800g
                                                              Part C: 2 KG

    38 KG Packs                                       Part A: 10 KG
                                                              Part B: 08 KG
                                                              Part C: 20 KG

    Packaging

    3.8 KG, 38 KG


Product Description

Ressi Anchor Fix is a three-component epoxy based high strength adhesive and anchor grout. It forms to give a strong, dense solid material. It is available in premeasured ready to use kit.

Ressi Anchor Fix is a three-component epoxy based high strength adhesive and anchor grout. It forms to give a strong, dense solid material. It is available in premeasured ready to use kit.

STANDARDS

BS 6319: Part 2, BS 6319: PART 3, BS 6319: PART 7

USES

Ressi Anchor Fix is used as epoxy grouting for bar anchor, starter bars, bridge bearing, boom fixing, bolts, nails, etc. It is used for speedy and permanent patching repairs to concrete structures, bonding of precast concrete components, bridge bearings to concrete and all structural repair works where strength, impermeability to water and resistance to aggressive chemicals is essential.

ADVANTAGES

  • High early strength
  • Good adhesion to all substrates
  • Unaffected by a wide range of acids, alkalis, and industrial chemicals
  • 3 to 4 times stronger than typical concrete
  • Excellent resistance to abrasion and impact.
  • Vibration resistant
  • Corrosion resistant
  • Tolerant to damp conditions

SURFACE PREPARATION

All surfaces should be dry, clean, free from standing water, grease, curing compounds, mold oils and all loosely adhering particles. Cement laitance should be removed by mechanical means. Roughen surfaces with chipping to ensure good bonding.

MIXING

Mix component A and B together thoroughly with a slow speed drill for 1 minute (max 400 R.P.M.). Once the mixture is homogenous, Part C can be added as per the recommended ratio and packaging. The product is ready to use one all three components are mixed properly and homogenous.

APPLICATION

For Anchor Bolts: Anchor bolt, dowel & starter bar holes must be dry. For bolts which will be placed into preformed holes, fill hole with Ressi Anchor Fix & gradually work the bolt into the grout.

For Patching Work: Apply the material by using notch trowel, scrapper or with a big spatula.

QUANTITY ESTIMATE:

Hole Diameter (mm)

Volume of Grout for bolt diameter

12

16

20

25

32

40

20

25



25

50

40

25



32

80

70

60

40



38



130

100

75

45



45



150

130

100

45

50



180

150

90

62



280

225

Volume of Ressi Anchor Fix SG in ml./100 mm. bond length

SHELF LIFE

12 months from date of production, if stored properly in original unopened packing in dry conditions and away from sunlight and scorching heat.

PACKAGING

Ressi Anchor Fix is available as follows.

3.8 KG Packs                                      Part A: 1 KG
                                                          Part B: 800g
                                                          Part C: 2 KG

38 KG Packs                                       Part A: 10 KG
                                                          Part B: 08 KG
                                                          Part C: 20 KG
