Water Guard 1530 Econo
Water Guard 1530 Econo is an economical waterproofing solution developed to provide effective moisture protection and surface durability for construction and maintenance applications. Its advanced formulation helps reduce water penetration while supporting reliable protection for concrete and masonry surfaces exposed to environmental conditions. The product is suitable for residential, commercial, and infrastructure projects where cost-effective waterproofing performance is required. Water Guard 1530 Econo contributes to improved structural protection and long-term surface reliability in demanding weather conditions.
Water Guard 1530 Econo is a moderately flexible single component elastomeric waterproofing coating based on high grade acrylic co-polymers. Water Guard 1530 Econo is suitable for a variety of waterproofing applications such as swimming pools, balconies, bathrooms, wet areas, roof, and several concrete below ground applications such as basements, lift pits ect.
TECHNICAL DATA
|
Property
|
Test Method
|
Value
|
|
Component
|
-
|
Single
|
|
Form
|
-
|
Viscous Paste
|
|
Color
|
-
|
White
|
|
Specific Gravity
|
ASTM D 1457
|
1.50 ± 0.02
|
|
Solid Contents
|
ASTM D 1644
|
> 70%
|
|
Drying Time
|
-
|
40-50 minutes
|
|
Recoat Time
|
-
|
Minimum 2 Hours
|
|
Full Cure
|
-
|
Minimum 7 Days
|
|
Bond Strength
|
ASTM D 4541
|
> 1 N/mm2 @ 28 Days
|
|
Initial water absorption
|
BS 1881 - 5
|
>98% reduction over control
|
|
Crack bridging ability
|
ASTM C 836
|
No Crack at 1mm thickness
|
|
Elongation
|
ASTM D 415
|
>130%
|
|
UV Resistance
|
ASTM G 53
|
No change in color after 300 hours
|
|
Heat Reflection
|
-
|
30%
|
|
Accelerated weathering
|
-
|
PASS – No Cracking
|
Typical Results under laboratory conditions
ADVANTAGES
- Can be applied to freshly hardened concrete.
- Excellent elongation and flexibility.
- Exhibits crack bridging and sealing property.
- Protection against carbonation and chlorides.
- Excellent for damp proofing basements.
- Excellent adhesion.
- Easy to apply.
- Increased frost and salt resistance
SURFACE PREPARATION
Surface should be cleaned and sound, free from dust, loose particles, grease, oil, primers, from Previous membrane systems or bitumen. Bitumen or primers should be removed by shot blasting or mechanical means. Spalled concrete should be repaired by cutting to sound Concrete and patching with Polymer modified repair mortars. There are a variety of repairing mortars and crack fillers available in Ressichem Patch and Crack Heal range for the repairing of a variety of different surfaces. It is recommended to use polymer coated tape (Construction Grade) at all critical areas such as intersections, corner joints, floor/wall junctions, gaps, peripheral areas, or pipelines before the application of Water Guard 1530 Econo Prior to fixing the polymer coated tape, gaps and corners should be filled and leveled with an appropriate polymer modified Grout from the Ressichem range of products.
APPLICATION
Saturate the concrete surface with clean water. Apply the first coat while the surface is still damp with no free-standing water. Apply using a short stiff bristle brush or roller at a minimum thickness of 120 micron per coat. After 2-3 hours, apply the second coat in perpendicular direction to the first coat (If the first coat has been applied in top to bottom direction, the second coat should be applied in left to right direction and vice versa). Spray or trowel application is acceptable provided the mixing ratio is adjusted to achieve the right consistency.
CURING
Water Guard 1530 Econo should be protected from high wind, direct sunshine, and rain until fully cured.
SHELF LIFE
Expiration of Water Guard 1530 Econo is 12 months after production date under dry and sheltered conditions.
PACK SIZE

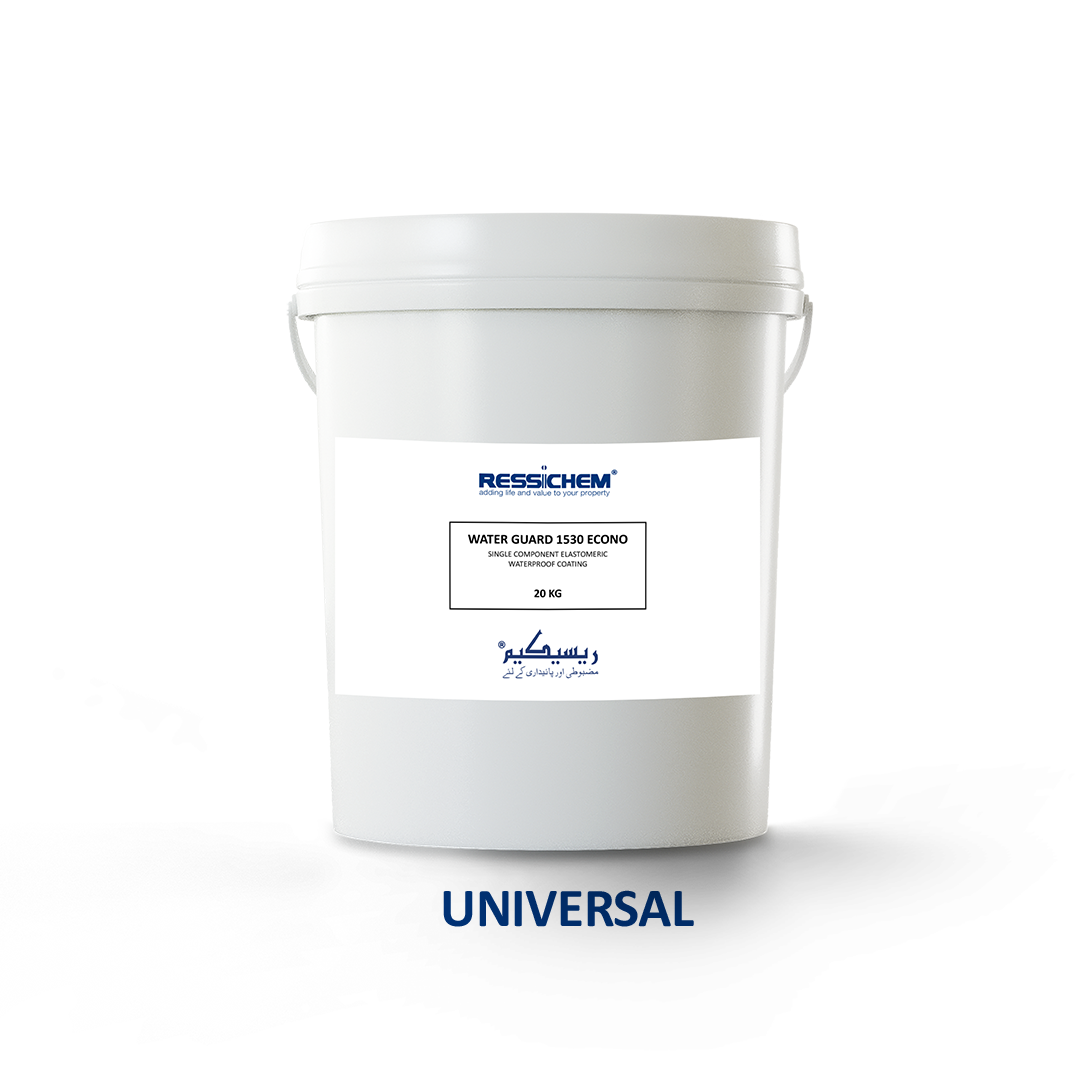

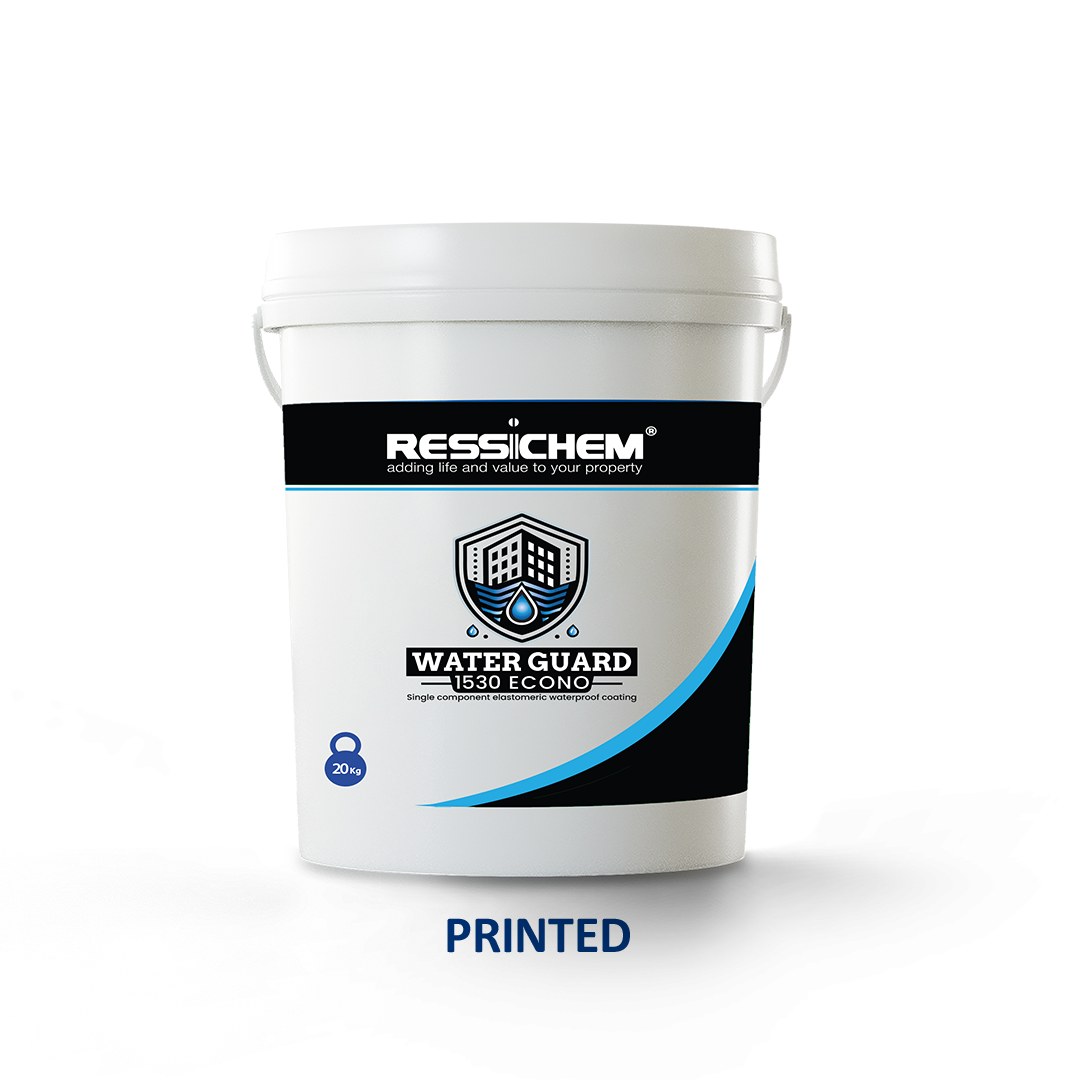

Water Guard 1530 Econo is available in 20 KG Buckets.
HEALTH AND SAFETY
Water Guard 1530 Econo is not regarded as hazardous for transportation. Do not reuse the packaging and dispose them off as per local rules and regulations. Gloves and suitable masks can be worn during application. Please refer to the MSDS of the product for further health and safety information.
APPLICATION
Saturate the concrete surface with clean water. Apply the first coat while the surface is still damp with no free-standing water. Apply using a short stiff bristle brush or roller at a minimum thickness of 1 mm per coat. After 2-3 hours, apply the second coat in perpendicular direction to the first coat (If the first coat has been applied in top to bottom direction, the second coat should be applied in left to right direction and vice versa). Spray or trowel application is acceptable provided the mixing ratio is adjusted to achieve the right consistency. It is recommended that for application over hollow blocks or highly porous areas, a minimum of 3 coats to total thickness of 3 mm be applied.
CURING
Water Guard 1530 Econo should be protected from high wind, direct sunshine, and rain until fully cured. Keep the treated area moist for 3-4 days after application.
SHELF LIFE
Expiration of Water Guard 3020N is 12 months after production date under dry and sheltered conditions.
PACKAGING
Water Guard 3020N is available in 15 KG and 20 KG Buckets
HEALTH AND SAFETY
Water Guard 3020N is not regarded as hazardous for transportation. Do not reuse the packaging and dispose them off as per local rules and regulations. Gloves and suitable masks can be worn during application. Please refer to the MSDS of the product for further health and safety information.
NOTE:
If printed packaging not available, neutral packaging with label. Lot number and manufacturing date to be stamped at the back of each packaging.
